StarTech.com 4-Port USB 2.0 Hub - USB Type B - External - 4 USB Port(s) - 4 USB 2.0 Port(s) - PC, Mac - TAA Compliant

Product Code: STCST4200USBM
Product Unit: Each
Non-Returnable

  • Protects your connected devices with 8kV Air and 4kV Contact ESD protection
  • Mount industrial USB 2.0 hub where required with built-in mounting brackets or included DIN rails
  • Offers flexible, wide-range power inputs with a 7-24V DC terminal block
  • Adds four USB 2.0 ports from a single USB connection
$83.75

Product Details

General Information

Product Color Black
Platform Supported PC ~ Mac
Total Number of USB Ports 4
TAA Compliant Yes
Host Interface USB Type B
Form Factor External
Ports quantity 4
Host interface USB 2.0 Type-B
Hub interfaces USB 2.0
USB 2.0 ports quantity 4
Card reader integrated No
Terminal block port Yes
DC-in jack No
Data transfer rate 480 Mbit/s
Product colour Black
Housing material Steel
LED indicators Power
Plug and Play Yes
Certification CE, FCC, TAA, RoHS
Input voltage 7 - 24 V
Width 57.3 mm
Depth 114 mm
Height 26 mm
Weight 207 g
Package width 210 mm
Package depth 146 mm
Package height 40 mm
Package weight 400 g
Cables included USB
Manual Yes
DIN rail kit included Yes
Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -20 - 85 °C
Operating relative humidity (H-H) 5 - 95%
Mean time between failures (MTBF) 193317 h
Master (outer) case width 447 mm
Master (outer) case length 527 mm
Master (outer) case height 339 mm
Products per master (outer) case 50 pc(s)
Harmonized System (HS) code 84719000
Chipset Renesas/NEC - µPD720114

Product Information

Brand StarTech
Type USB Hubs & Adaptors

Overview

Industrial-grade | 8kV Air | 4kV Contact | Metal | Mountable | DIN Rail | 480 Mbps

This TAA compliant 4-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect More USB Devices

Designed for a high volume of connections, this robust USB 2.0 hub offers four connection ports, for connecting more USB devices and peripherals.

Locate the Hub Where You Need It Most

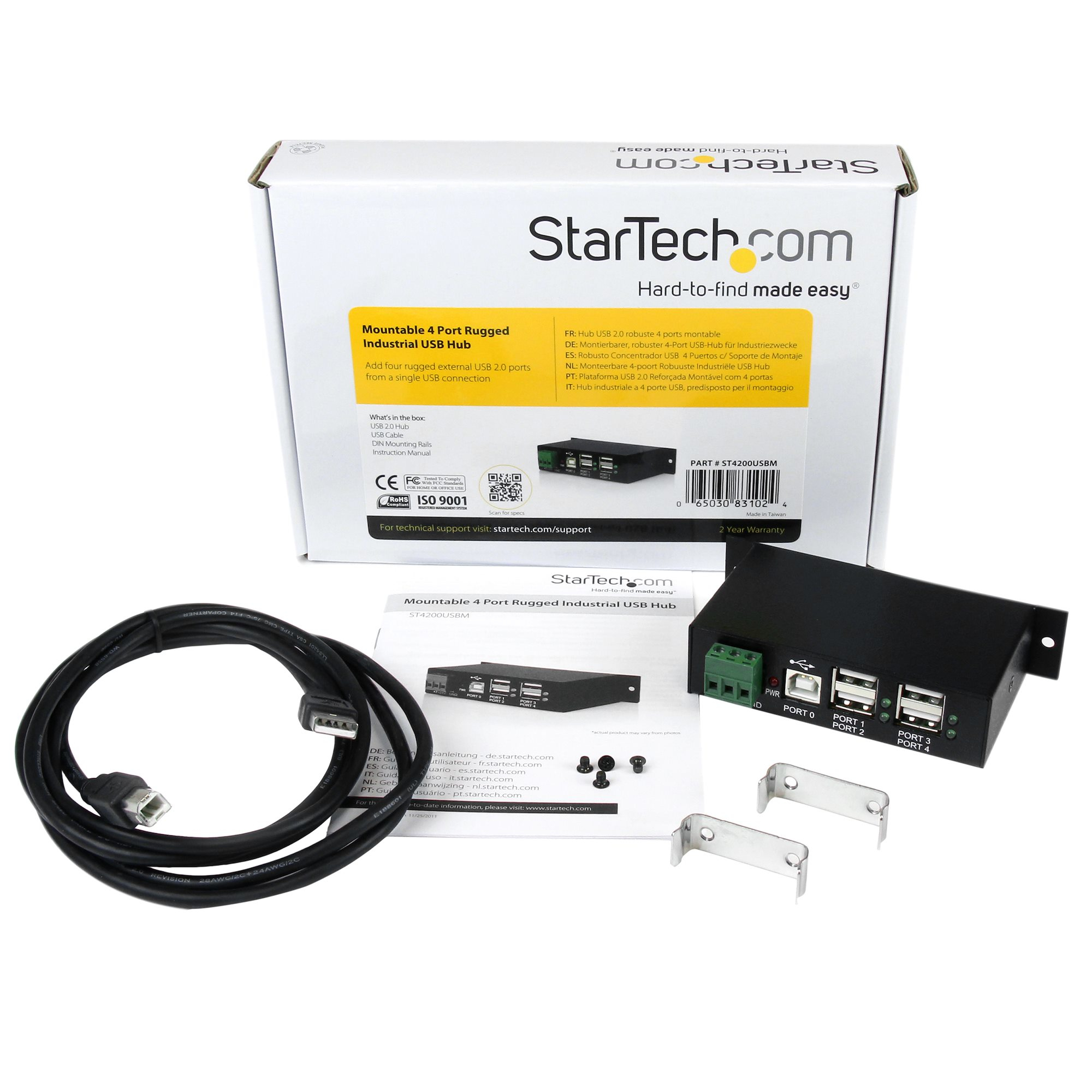

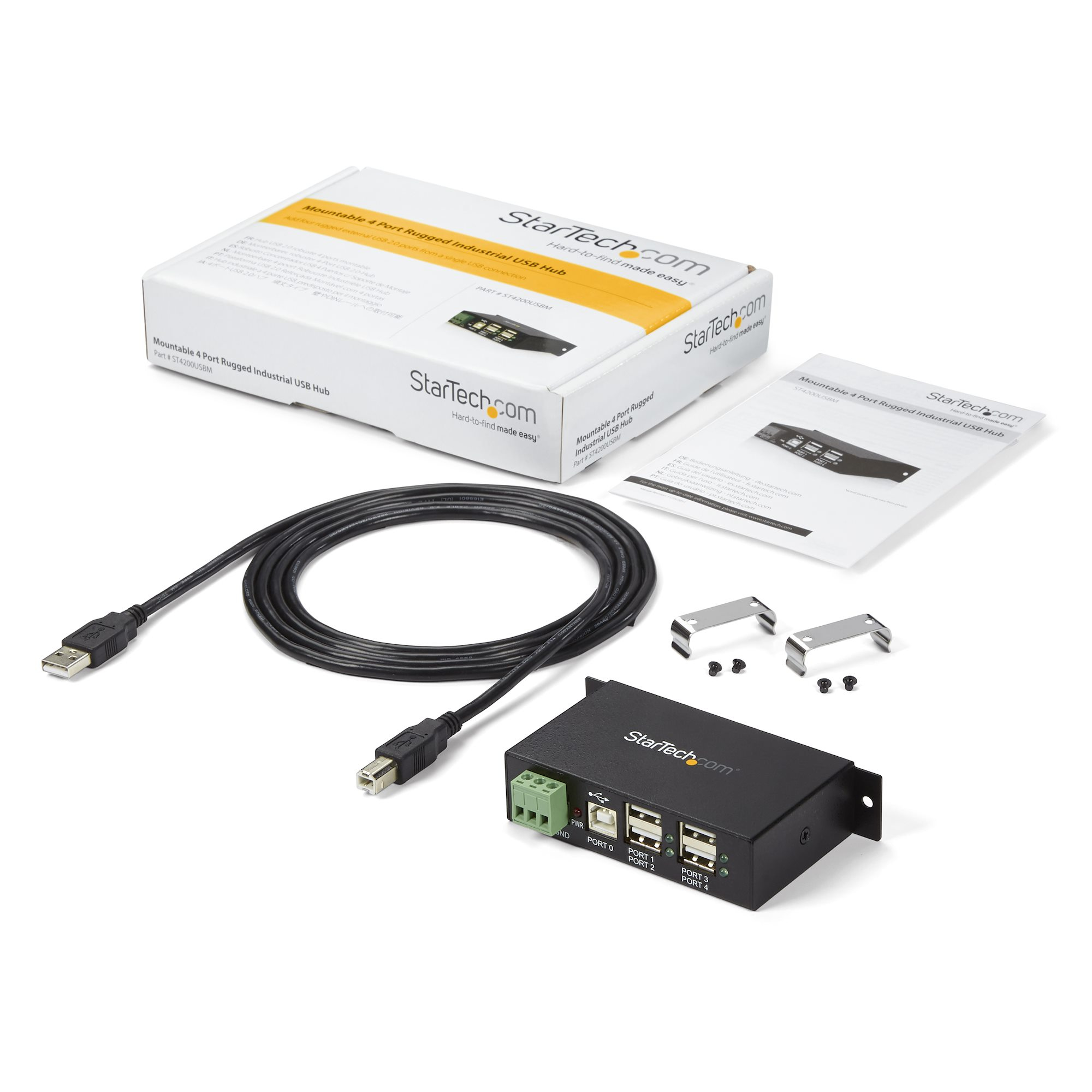

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.

The ST4200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

From the Manufacturer

Also Consider

Alternative Products

Additional Documentation

mmo_2330243_1645525459_1887_29116.pdf
mmo_2330243_1645525458_3391_20112.pdf
